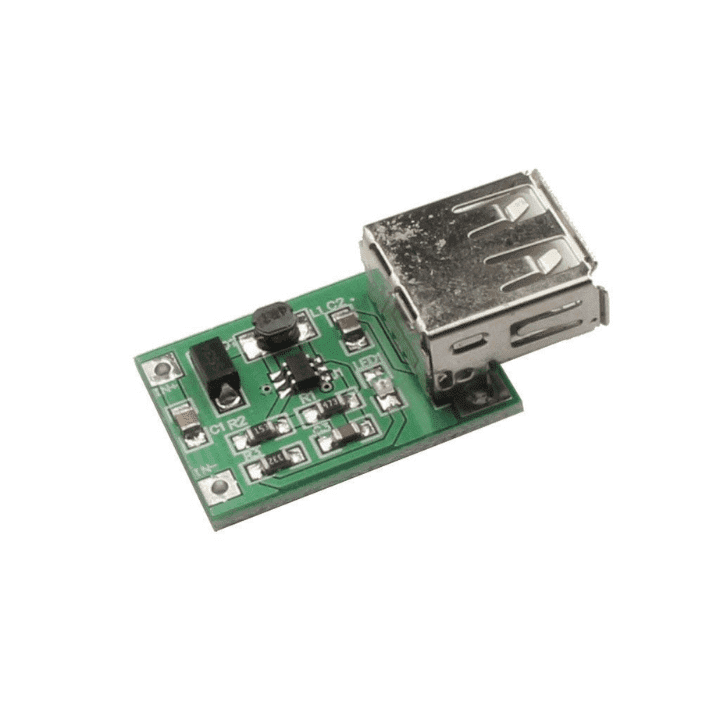

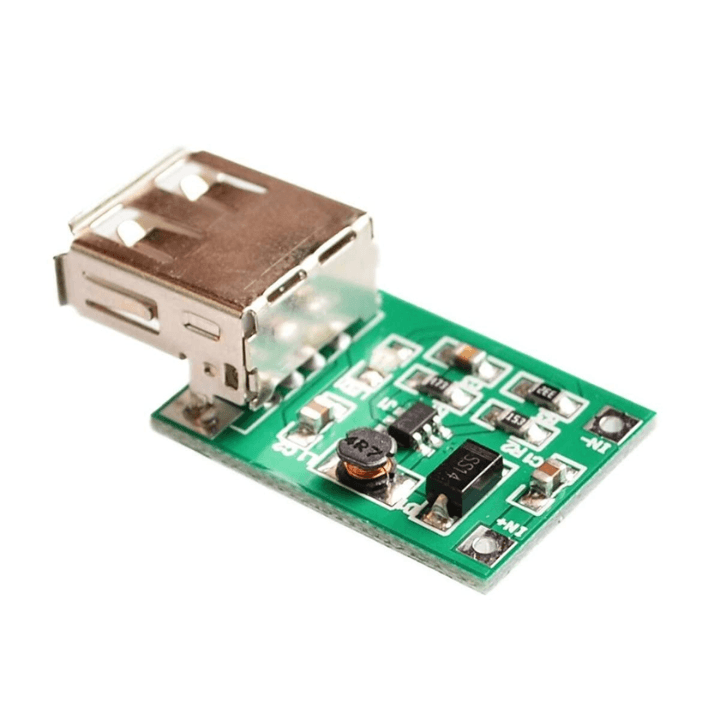

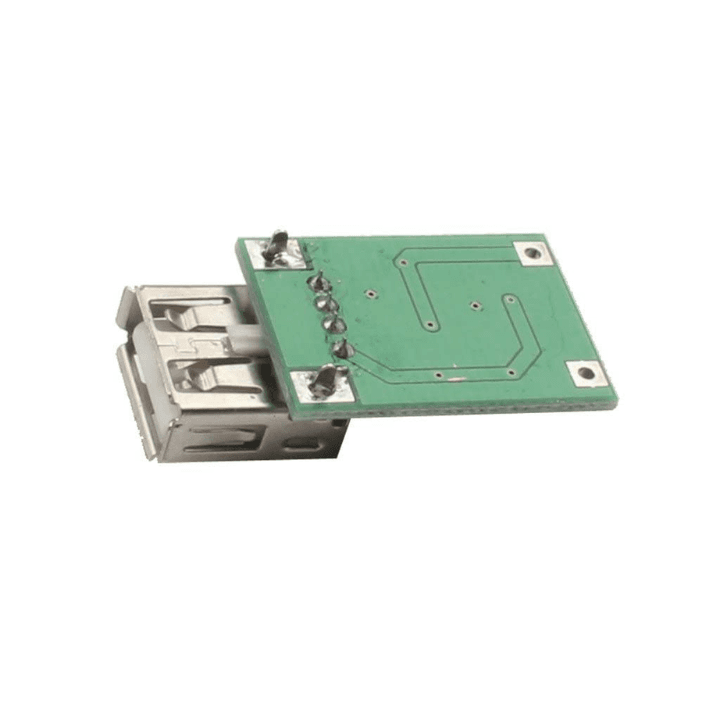

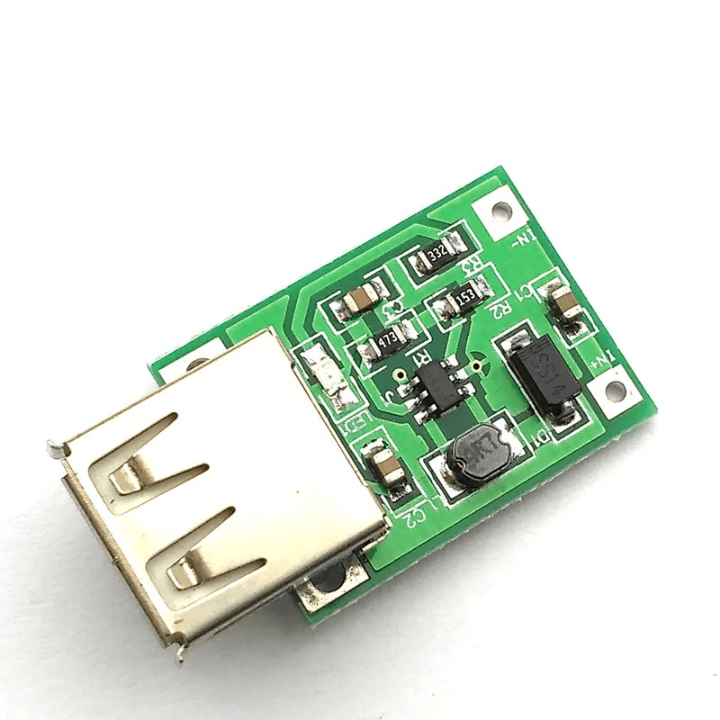

0.9V-5V to 5V 600MA USB Output charger step up Mini DC-DC Boost Converter

Description

0.9V-5V to 5V 600MA USB Output charger step up Mini DC-DC Boost Converter

This Step-up Module is highly beneficial as it allows for an input range of 0.9-5V and an output of 5V, which is compatible with a variety of digital devices. As a result, it is an excellent choice for creating a portable charger and can prove useful in USB charger projects and onboard USB device supply solutions, such as GoPro cameras.

Moreover, This boost converter offers versatility in terms of power supply options. It can be powered by a single-cell LiPO or AA size battery, or other similar options. When powered by two AA batteries, it can output a current of 500-600mA. On the other hand, a single AA battery power supply can provide an output of 200 mA current supply, making it ideal for mobile phones, cameras, single-chip, and digital products supply.

Applications

• USB voltage regulator for USB-powered device.
• This module will bring the USB voltage required for your application at regulated 5V output.
• Various USB devices need 5V from low voltage batteries.
• Charge mobile phone/MP4/MP3 from AA battery when traveling

Features

• The module adopts a high-performance imported chip, performance is superior to the common module.
• Work with indicator light.
• Take the USB female, a wide range of Uses.
• A single AA battery power supply can output current up to 200-300 mA.
• Two AA batteries to the output current of 500-600 mA.
• Work from battery voltage as low as 0.9V, allowing you to maximize battery use.
• If your USB device is critical on 5V operation you can use this module.
